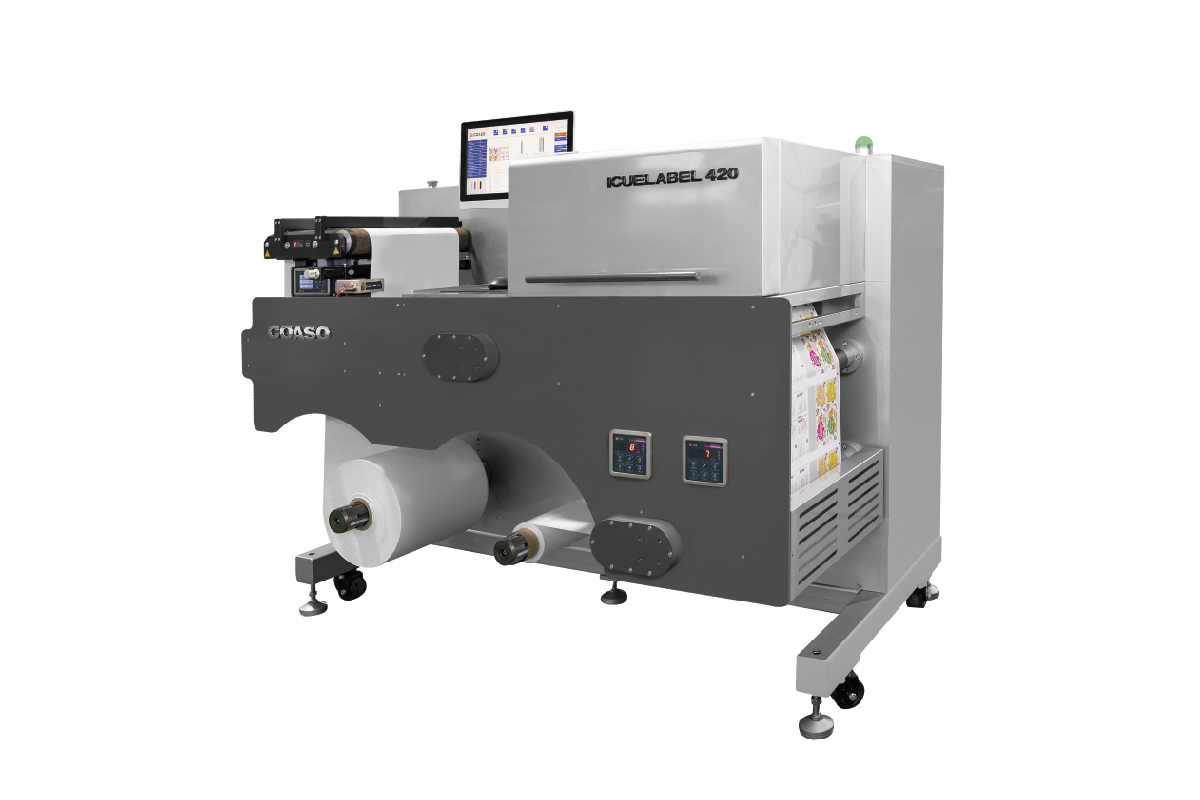

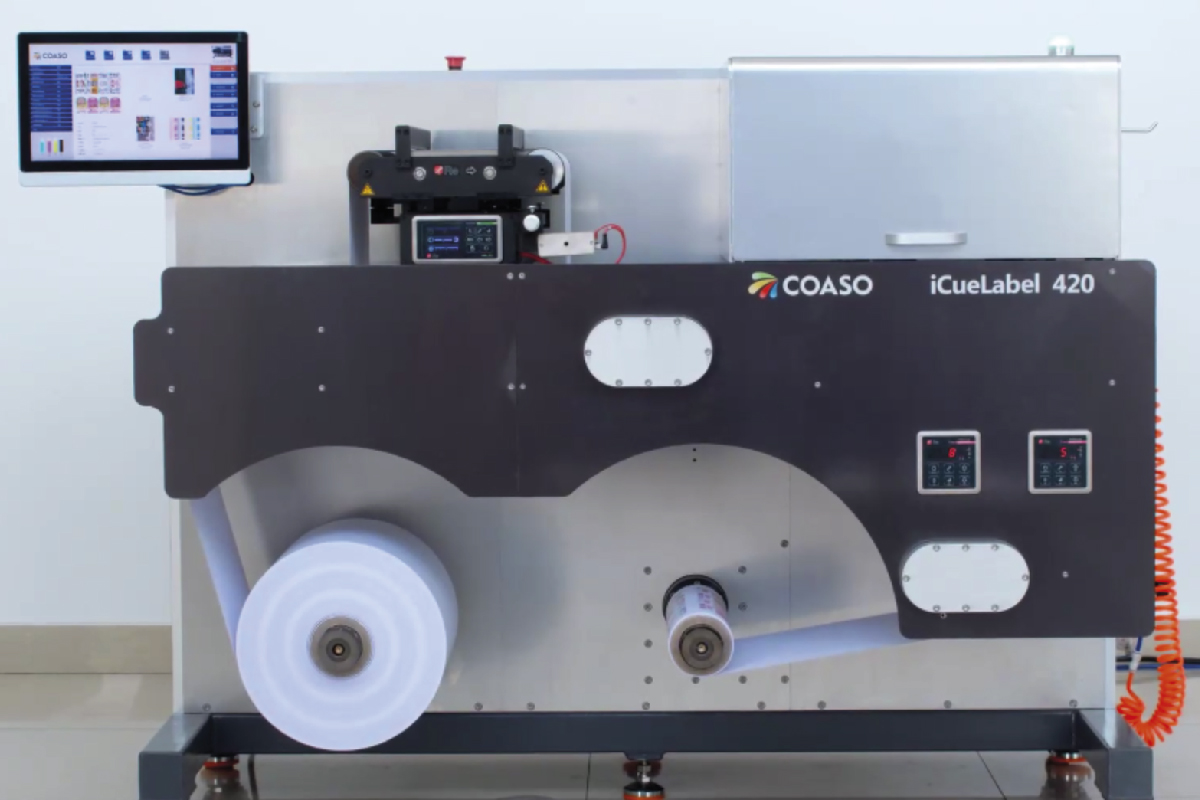

iCueLabel 420 Full-Color Label Printer

COASO iCueLabel 420 is the most innovative full-color digital printer to meet any demanding short and long production runs. It produces security prints of production quantities. iCueLabel 420 is designed with the latest inkjet technology to provide superior color richness and finest print quality. iCueLabel 420 uses a water-based ink that is environment friendly and suitable for a variety of applications such as book and magazine publications, self-stick labels, PET, PVC, PE, and PP.  iCueLabel 420 boasts a user-friendly system control on touch panels to simplify and streamline print process that is otherwise complicated and costly.

iCueLabel 420 runs with strong industrial-grade manufacturing processes to meet any production expectations. iCueLabel 420 has the highest cost performance ratio and the profit potentials that commercial printers are increasingly after.

Main Features

Full-color label printer of lowest cost and highest quality.

Most productive and operator friendly full-color digital printer.

Highest production output (27-45 meter/minute)

High definition: 1600*1600dpi

Unrivaled Color with ICC management

Environment friendly, water-based ink

Micro prints and variable data security prints

User-friendly and touch system control



Application

iCueLable 420 uses a water-based ink that is environment friendly and suitable for a variety of applications such as book and magazine publications, self-stick labels, PET, PVC, PE, and PP.

  Printing Color

  Full color CMYK

   Printing Resolution

    1600×1600 dpi, 1600×954 dpi

   Printing Speed

    18 ips (27m / min), 30 ips (45m / min)

   Max. M. Width

    420 mm

   Max. P. Width

    324 mm

   Max. R. Diameter

    600 mm

   Core Size

    76 mm

   Min.S.Thickness

    0.05 mm

   Max. S. Thickness

    0.35 mm

   Printing M. Type

   Writing paper and coated glossy paper, matte paper, PE, PET, PP, etc.

   Ink Capacity

   Independent CMYK four large capacity of 2L ink tank, high performance fast drying water based pigment ink.

    Printing Platform

   High reliability aluminum alloy fully enclosed structure
Double servo rewinding and unwinding system
Automatic correction system
Full closed loop tension control system
Intelligent control human-computer interaction system

   Operating Temperature

    20-30C°, relative humidity 30-50% (no condensation)

  Storage Temperature

   10-40C° , relative humidity 65% (no condensation)

  Equipment Dimension

    1900 × 1110 × 1450 mm

  Power Requirements

   Single phase 220V, 7KW

  Air source Requirements

  Clean air 0.5-0.6Mpa, 8mm standard air pipe
